SPECIFICATIONSBUILT FROM: 2010
ENCLOSURE TYPE: Bass-reflex via dual front-firing ports
FINISH: Black Ash woodgrain vinyl
FREQUENCY RESPONSE: 88Hz-24KHz ± 3dB
HIGH FREQUENCY CROSSOVER: 1700Hz

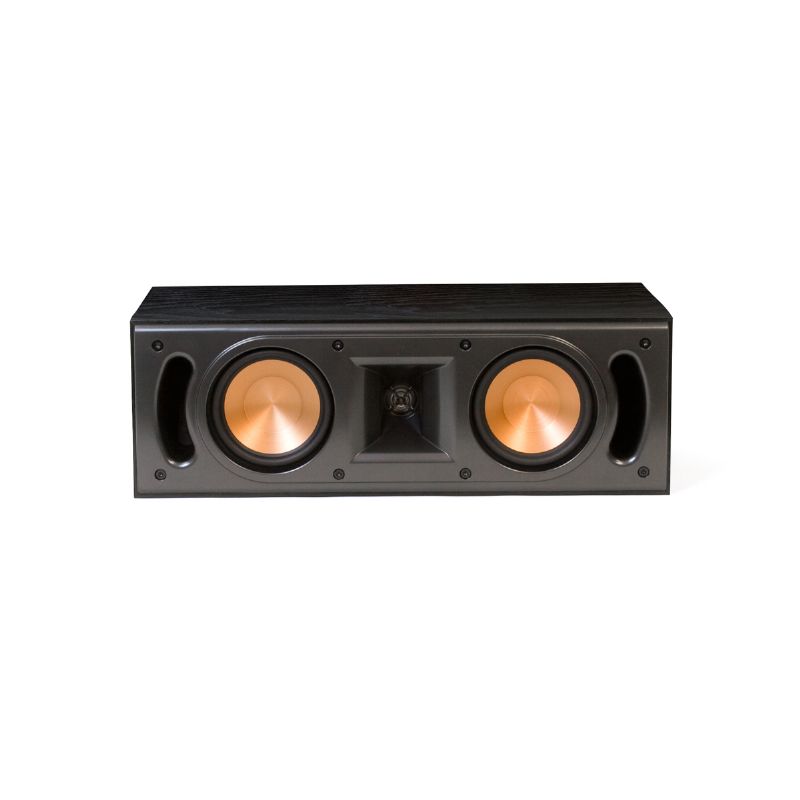

HIGH FREQUENCY DRIVER: 1" (2.54cm) Titanium diaphragm compression driver mated to 90° x 60° square Tractrix® Horn

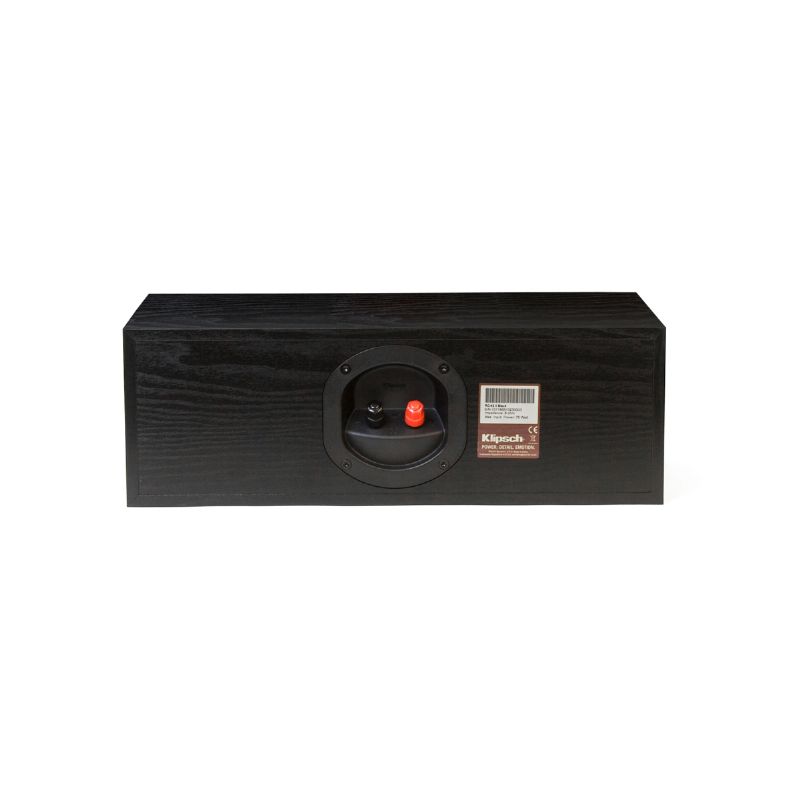

INPUTS: Single binding posts
LOW FREQUENCY DRIVER: Dual 4" (10.2cm) Cerametallic cone woofers
MOUNTING: Uptilt and Downtilt feet
NOMINAL IMPEDANCE: 8 Ohms compatible
POWER HANDLING: 75W RMS / 300W Peak
SENSITIVITY: 95dB @ 2.83V / 1m
WEIGHT: 12.6lbs (5.7kg)
WIDTH: 16" (40.7cm)
DEPTH: 8.9" (22.7cm) with grille
HEIGHT: 5.4" (13.7cm)
