Sonus Faber Liuto

System:
3 way floorstanding vented box loudspeaker.

Cabinet:
Lute shape design ensures excellent stiffness
avoiding resonances and standing waves.
Sub-structural ribs are strategically placed
for absolute rejection of spurious vibrations.

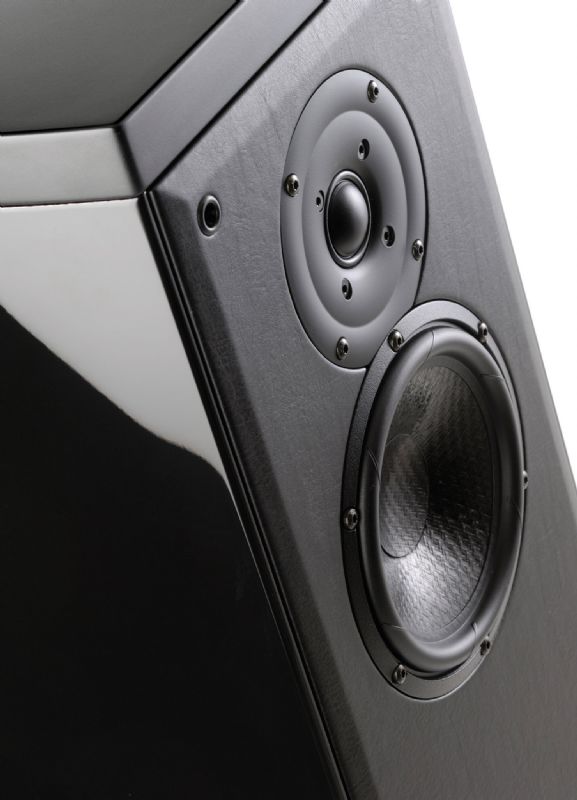

Tweeter:
25 mm high definition precoated fabric dome
driver with wide soft polymer surround and
rear chamber. Custom design.

Midrange:
150 mm cone driver. A free compression
basket design and a thermo-mouldered polypropylene textile cone, also known as "curv”,
ensure an excellent dynamic performance.
Custom design, synergistically optimized with
its acustic chamber.

Woofer:
220 mm lightweight Aluminum/Magnesium
alloy cone driver. Ultra dynamic performance
and linearity. Special coaxial anti-compressor
is used, designed to remove cavity resonances
and distortions.

Crossover:
Non-resonant second order design, optimized
phase characteristics for optimal space/time
performance, cross-over points 350 Hz – 3.000 Hz.

Freqency response:
40 Hz – 25.000 Hz, tuning ports included.

Sensitivty:
89 dB SPL (2.83 V/1m).

Nominal impedance:
8 ohm.

Power handling:
40W – 250W, without clipping

Finish:
Combination of goffered black and high gloss black piano lacquer.

Dimensions:
1031 x 236 x 413 mm (HxWxD).

Weight:
62 Kg per pair – net weight / 73 Kg per pair – shipping weight.
